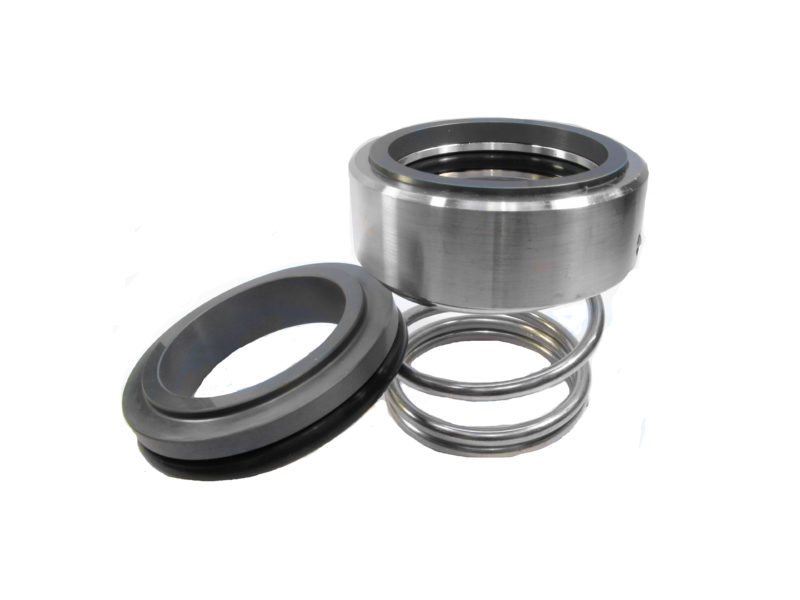

SNG 160
Single spring, conical, unbalanced mechanical seal. The spring can be supplied right or left depending on the direction of rotation. It can be coupled with different types of stationary parts according to the specific assembly requirements.
Operating conditions
T = -40°C a + 200°C
P = 0 a 12 Bar
V = 0 a 20 m/sec
Materials sealing faces rotating and stationary part
Silicon carbide
Graphite resin
Antimony graphite
Aluminium oxide
Elastomers
NBR
FKM
EPDM
FFKM
NOTE : possibility of using other materials according to specific needs.
